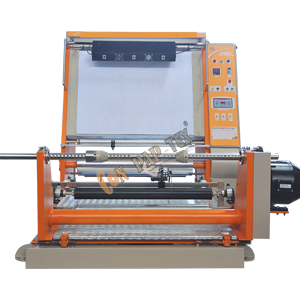

Inspection Rewinding Machine for Inkjet and Batch Printing
We manufacture and offer a wide range of Inspection Machine that is precisely designed. It is constructed to meet the standards that effectively meet the requirements of Inspection and slitting. We offer Inspection Machine to cut Label Rolls up to 1500 mm. The machine is provided with razor cutter or circular cutter arrangement and can slit up to 10 mm width.
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
|
Web width |
100 to 1500 MM |
|
Max. Weight of Unwind |
100 to 1000 KG |
|
Max. Parent Reel Dia. |
400 MM |
|
Max. Rewind Reel Dia. |
400 MM |
|
Rewind Core Dia. |
76 MM |
|
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
|
Maximum Designed Speed |
100 to 150 Mtrs / Min |
