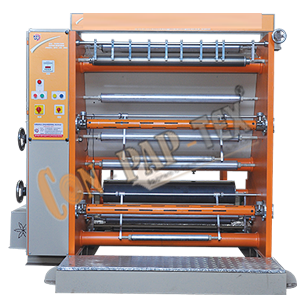

Slitting Rewinding Machine for Batch Printing / Coding

Slitting Rewinding Machine for Batch Printing / Coding

Slitting Rewinding Machine for Batch Printing / Coding

Heavy duty Slitting Rewinding Machine for Batch Printing / Coding. Our Winder Rewinder Machines for Inkjet Printing & Batch Printing are widely used by all Printer Manufacturers all over the world. In any paper, film and foil conversing industries, the Winder/Rewinder (Doctor Machine) is used widely for on-line printing of Mfg. Dt., Exp. Dt. B. No. etc. using Ink- jet printer or other contact coding machines from Roll to Roll at high speeds & then these printed roll are used in various packaging machines. Slitter Rewinder Machine With Usage as: Paper Printer, Label Printer, Bill Printer, Laminates like, Foil, Paper, LDPE, HDPE, PVC, and many more.

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM


 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
