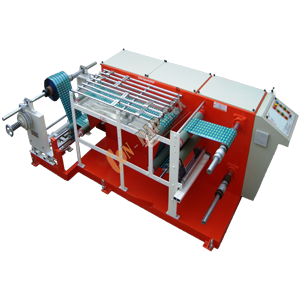

Special Application For Doctoring Rewinding Machine

Special Application For Doctoring Rewinding Machine

Special Application For Doctoring Rewinding Machine

We are engaged manufacturing Special Application for Doctoring Rewinding Machine with custom requirement. It is with an exclusive range of product quality specially used for flexible laminate, plain film, metalized films, Foil, Paper and much more. Also, all types of laminates, LDPE, HDPE, PVC, etc. It’s for especially used for quality control, we are manufacturing with most precision which ensures zero maintenance up to 10 years.

We are a genuine manufacturer, exporter, and supplier of Special Application for Doctoring Rewinding Machine. Also, Slitter Rewinder Machine, Winding Rewinding Machine for Inkjet Printer & Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.


  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM


 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
