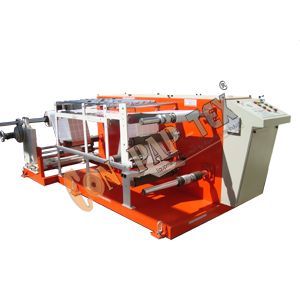

Winding Rewinding Slitting Machine with Two Stage Slitting

Winding Rewinding Slitting Machine with Two Stage Slitting

Winding Rewinding Slitting Machine with Two Stage Slitting

Winding Rewinding Slitting Machine with Two Stage Slitting Manufacturer and supply a wide variety of Winding Rewinding Slitting. Features with unwinding section, slitting section and surface winding section. It Includes razor cutting in the groove roller method with load cell sensor and Pneumatic nip rubber roller for accurate tension isolation. Line Guide for Perfect Edge Winding. Our Product range includes Machines Like : Doctoring Rewinding, Doctoring Rewinding Table Top, Table Top Doctoring Rewinding,High Speed Doctoring Rewinding, Heavy Duty Doctoring Rewinding, Doctoring Rewinding With Slitter System, Doctoring Slitting Rewinding, Label Stock Doctoring Rewinding, Special Application For Doctoring Rewinding, Film Winding Rewinding For Batch Coding, Winding Rewinding For Batch Printing, Winding Rewinding With Inkjet Printer, Winding Rewinding With Thermal Transfer Overprinter, Winding Rewinding With Multihead Inkjet Printer, Doctoring Film Strip Winding Rewinding, Winding Rewinding With Slitter System, Winding Rewinding Without Slitter System

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge Guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
