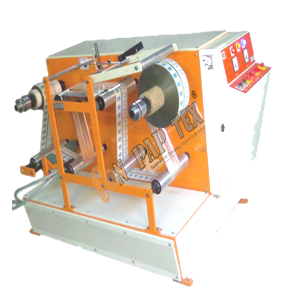

Doctor Re Reeling Machine

Doctor Re Reeling Machine

Doctor Re Reeling Machine

Doctor Re Reeling Machine Manufacturer, Exporter, and Supplier, we have designed and built for accuracy for doctoring use with air brake with reel diameter, Edge Guide with an actuator for the Unwind reel, Air shafts for Unwind & Rewind units. It is used to salvage badly rewound coils produced on the Slitting and Rewinding Machine.

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM


 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

Maximum                             Designed Speed

 100 to 150 Mtrs / Min
